Socket Flange



  • Integrated RIB Serrations under the head to provide superior vibration resistance compared to other commercial fasteners
  • Retains 89.1% of initial compressive load after 400 cycles on the Junkers Transverse Vibration Test
  • Available now on the Flange Socket Head Cap Screw (a.k.a. Socket Flange)


The all-new Socket Flange Screw is officially part of the NBS product lineup.  With unique RIB serrations that provide maximum vibration resistance, the Socket Flange Screw is a new commercial fastener that will enhance the socket line of any fastener distributor.



 Compressive Load

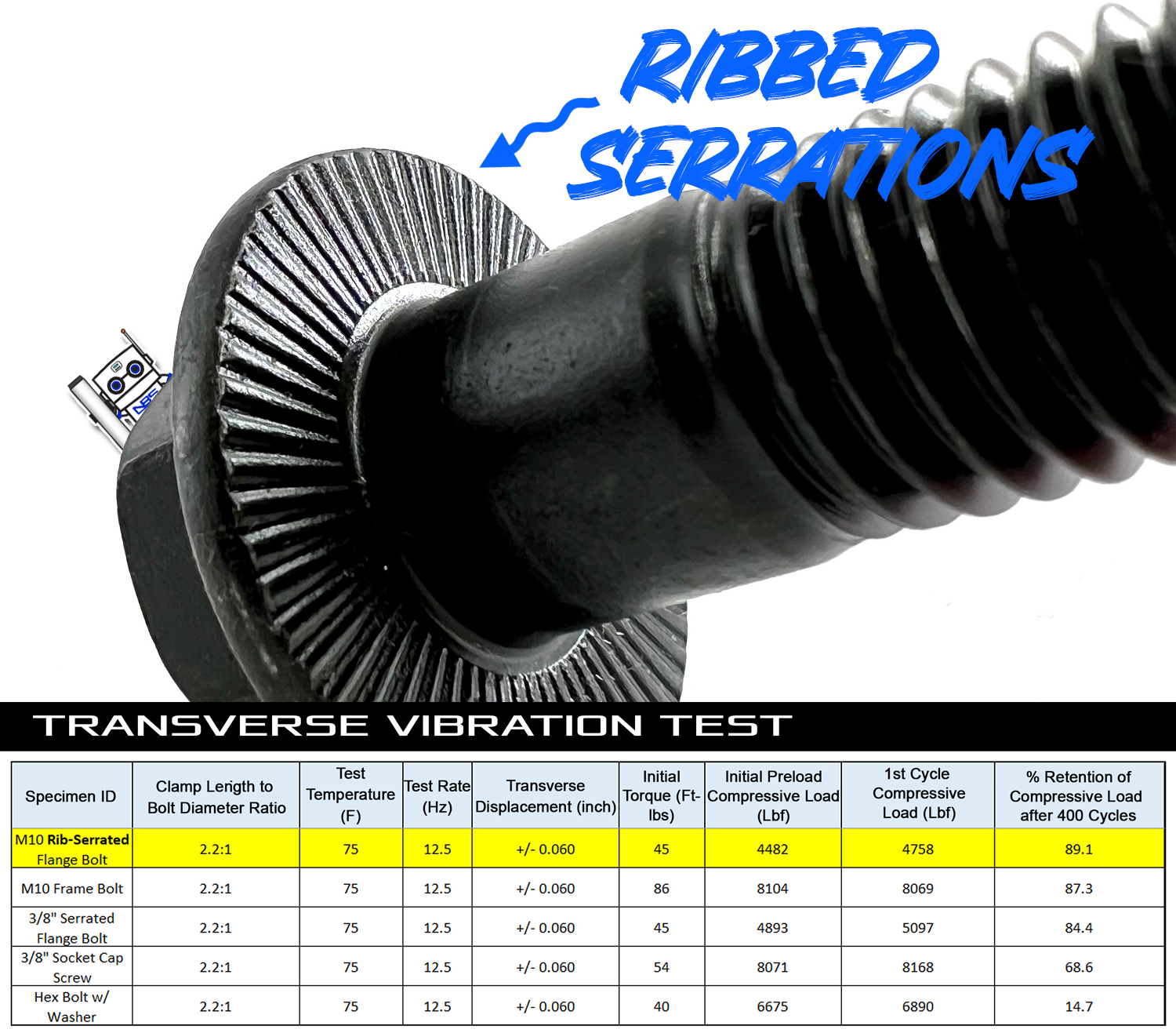

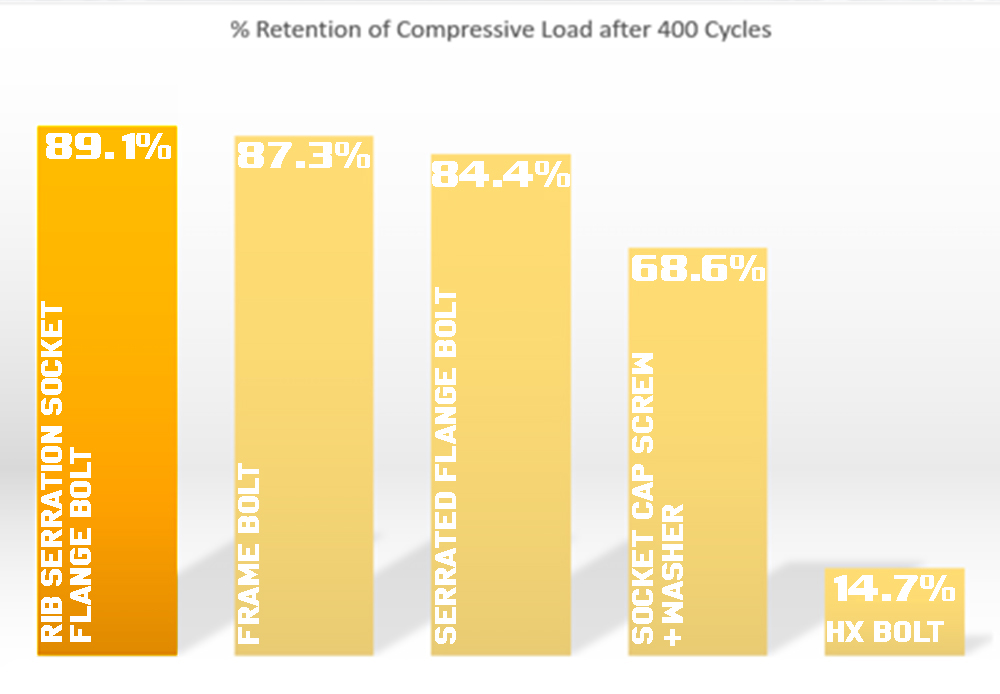

Put through the rigors of a Junkers Transverse Vibration test, the Socket Flange Screw can retain 89.1% of its initial compressive load after 400 cycles, the highest out of any comparable commercial fasteners (i.e. frame bolts, serrated flange bolts, socket head cap screw and hex bolts with washer).

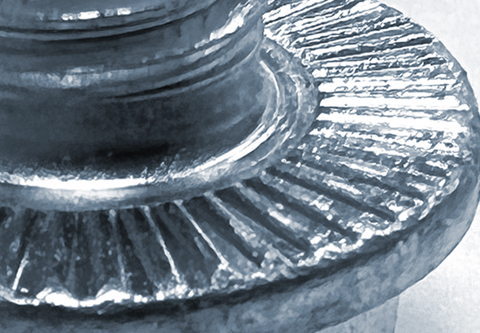

rib serrations

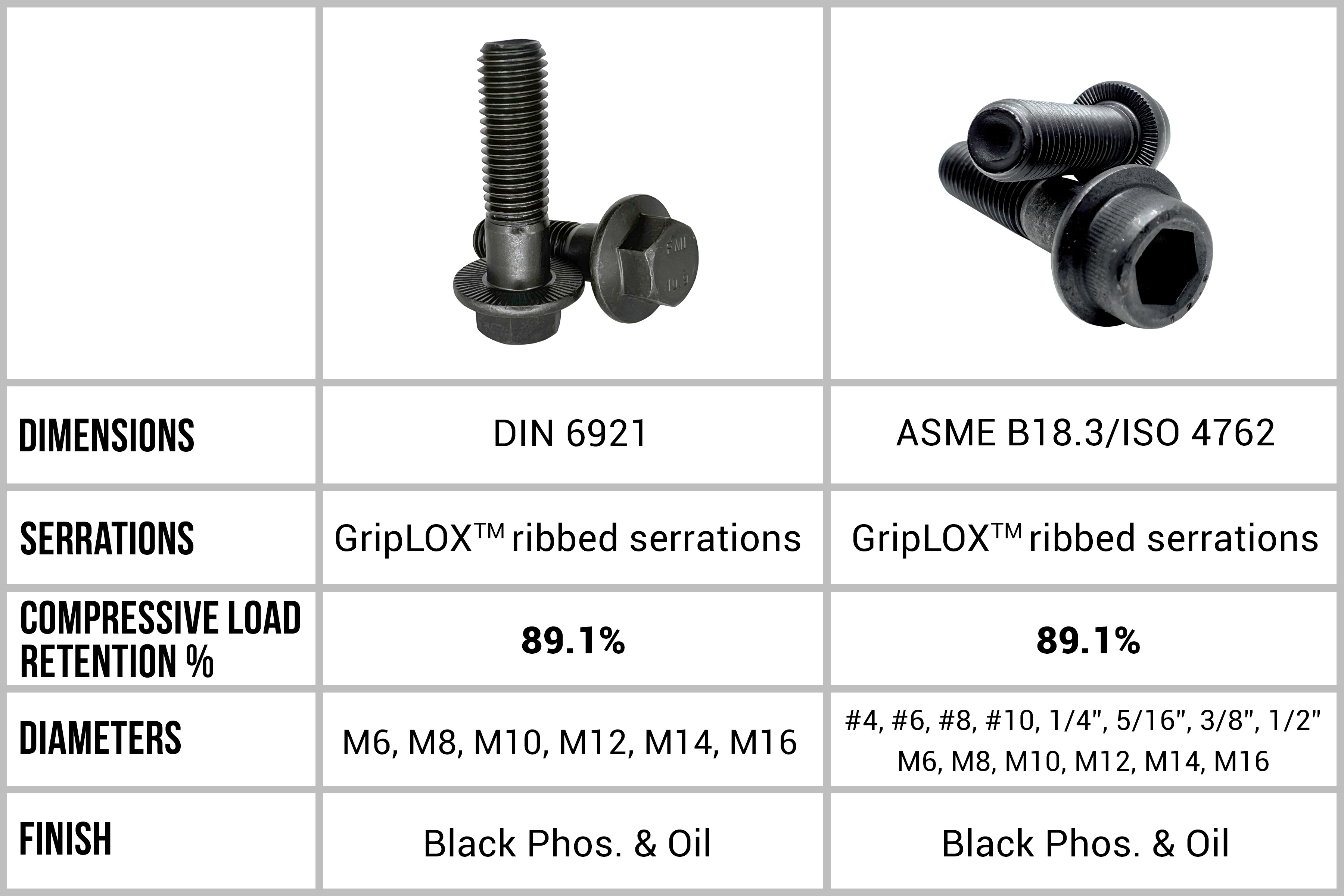

Inch or Metric



The Socket Flange Screw is now available in either Metric (Cl. 12.9) or Inch (Grade Alloy).  Both come with a black phosphate and oil finish and stocked in Los Angeles, CA and Elk Grove Village, IL.





Performance & Quality

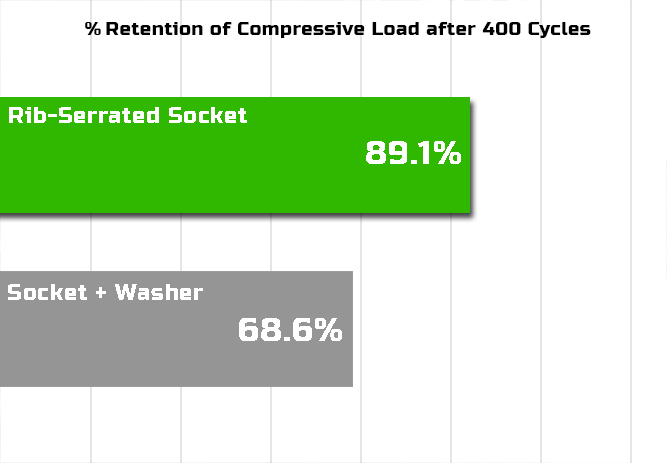

With nearly 21% more compression retention than a socket cap + washer combination, the Socket Flange Screw also provides you with peace of mind; the integrated flange is made from the same alloy steel and heat treated as well.

This elimanates not only material and dimensional variabilities, but helps reduce the number of washers needed for any given socket application.
